pbsSoftLogic :PLC/RTU Programming IDE Datasheet

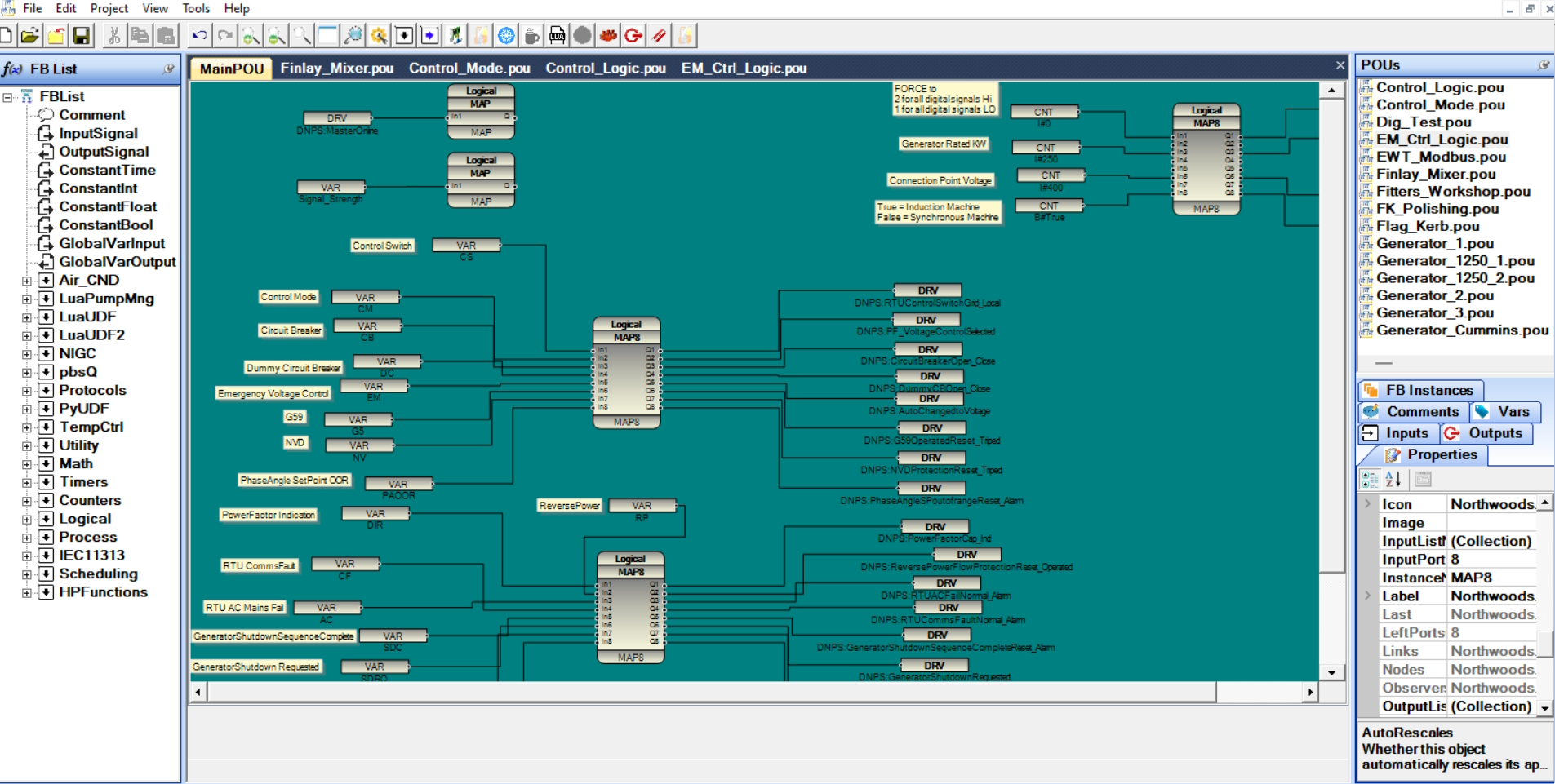

pbsSoftLogic is a complete and free IDE for easy PLC/RTU programming with Function Block language.pbsSoftLogic supports  following features:



- Runtime Kernel is developed by C and is compiled for Linux , QNX , WinCE and Win32/64 OS

- No programming for communication drivers, just configure drivers  with GUI

- Modbus Master /Slave (TCP/RTU) Driver

- DNP3 Master /Slave (TCP/Serial) With Supported IEC62351 SA Layer and TLS  Driver

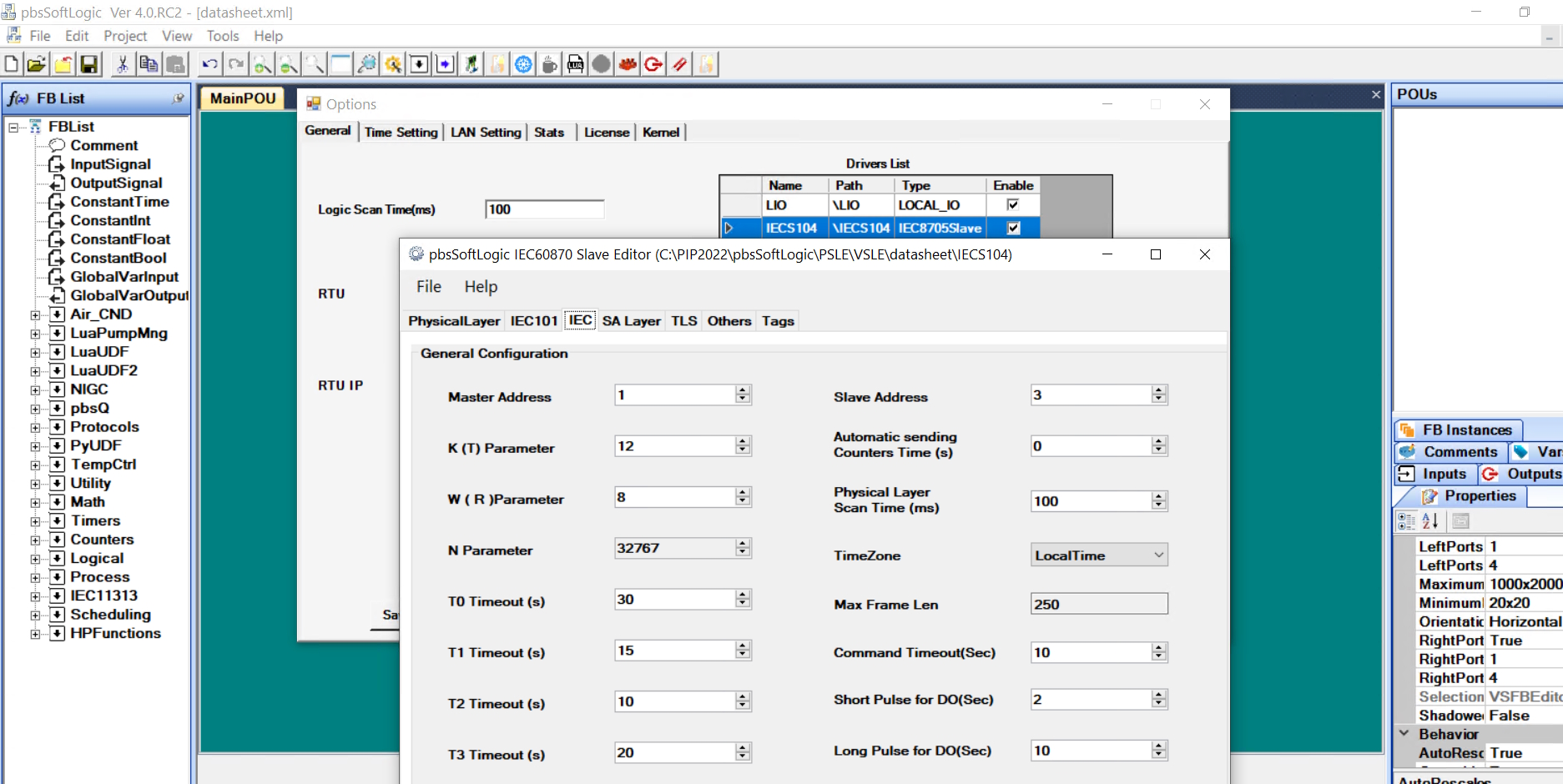

- IEC104 Master /Slave With Supported IEC62351 SA Layer and TLS Driver

- IEC101 Master /Slave Driver

- OPC UA Client /Server Driver

- MQTT Client Pub/Sub with json/XML Data model Driver

- Redis Client Driver

- SQLight for local data archiving and TDS for Inserting to MS SQL Server Driver

- IEC62056-21 for reading Meters Driver

- Vestas Wind Turbine Serial Interface Driver

- EmailPub Driver for publishing emails

- pbsCAN Driver for reading /Wrting to CAN IO Modules with pbsCAN Protocol

- pbsGSP Driver Optimized Mobile networking for SCADA systems

- User Defined FB by  C and  Lua languages

- Warm and Cold Logic Update at runtime , Logic Monitoing , Tag Forcing facility



- More than 400 Ready Function Blocks

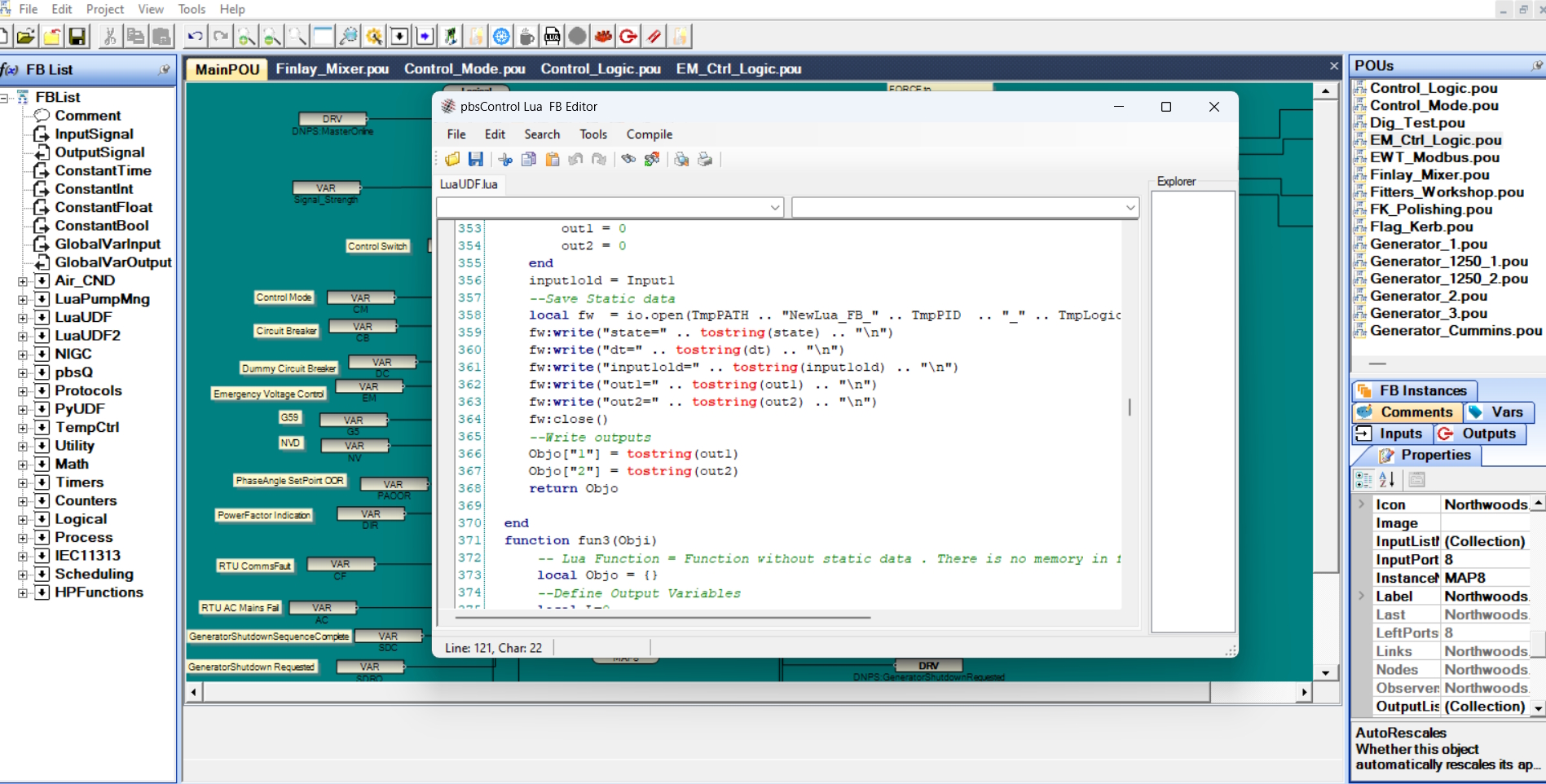

- Lua User FB Editor and compiler integarted to IDE



- Logic Simulation Utility

- General LocalIO for BeagleBone and RPI systems

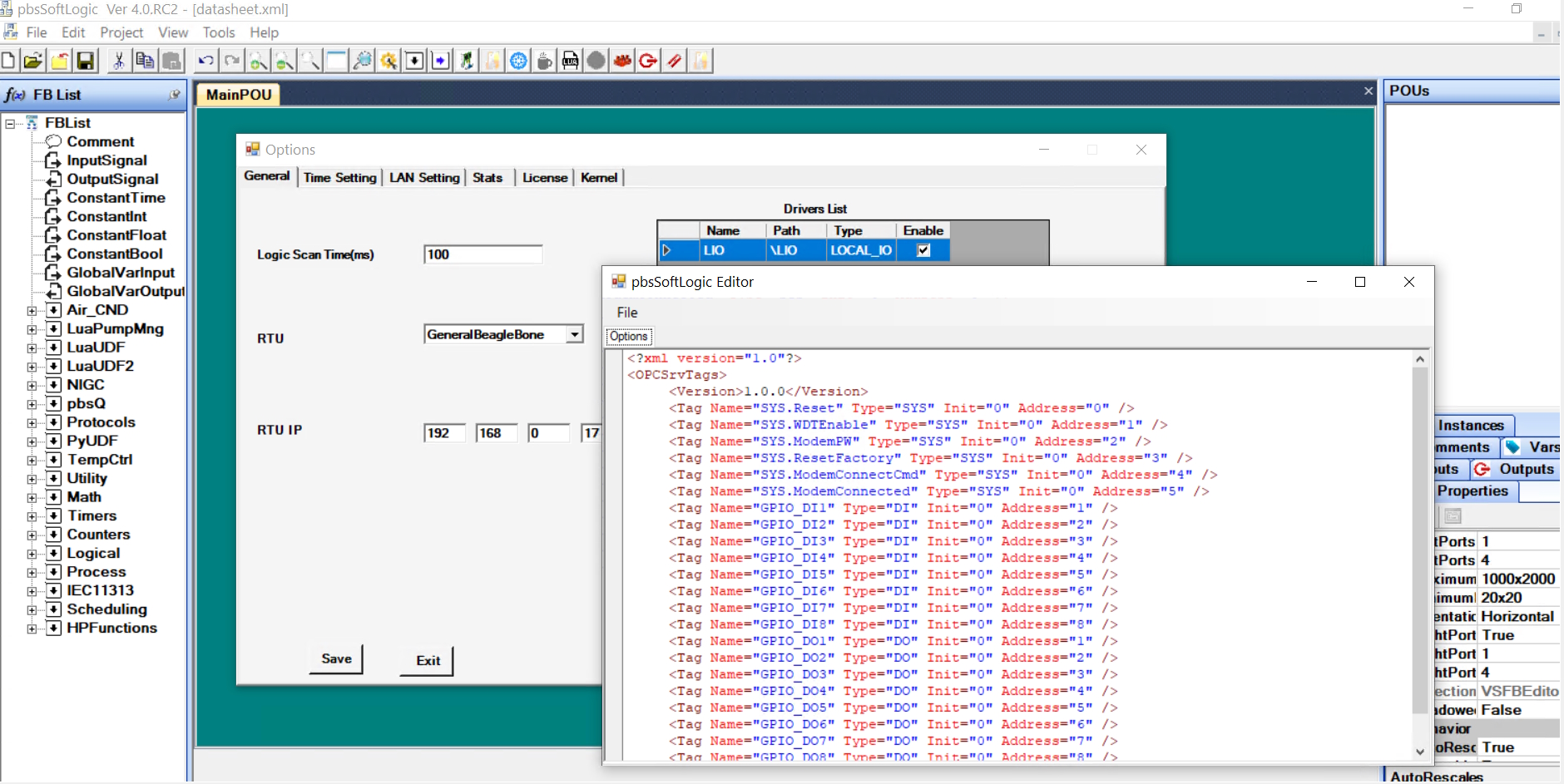

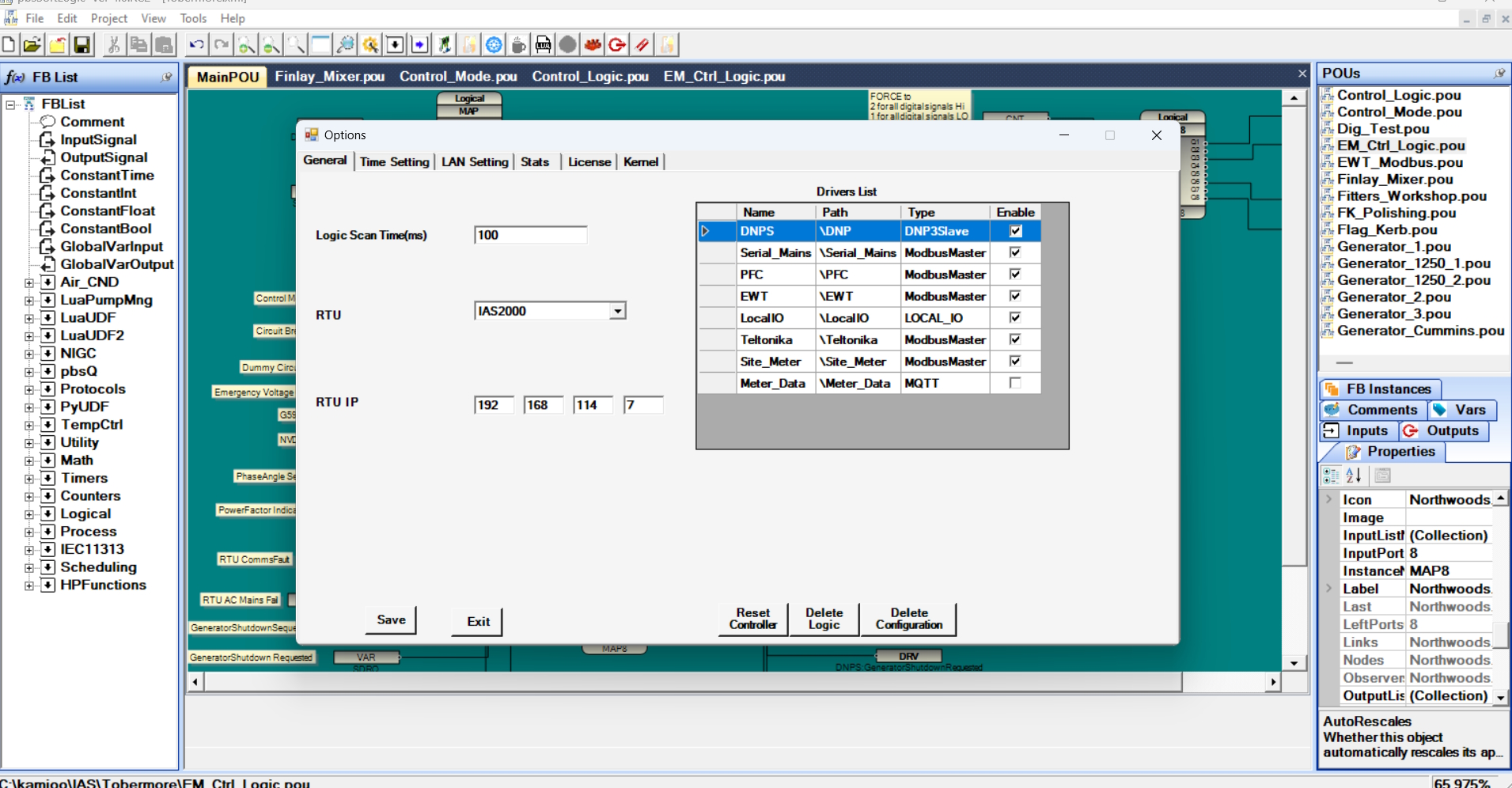

- GUI for all protocols for easy configuration



- Multiple Instance for each driver .

- Unlimited POU

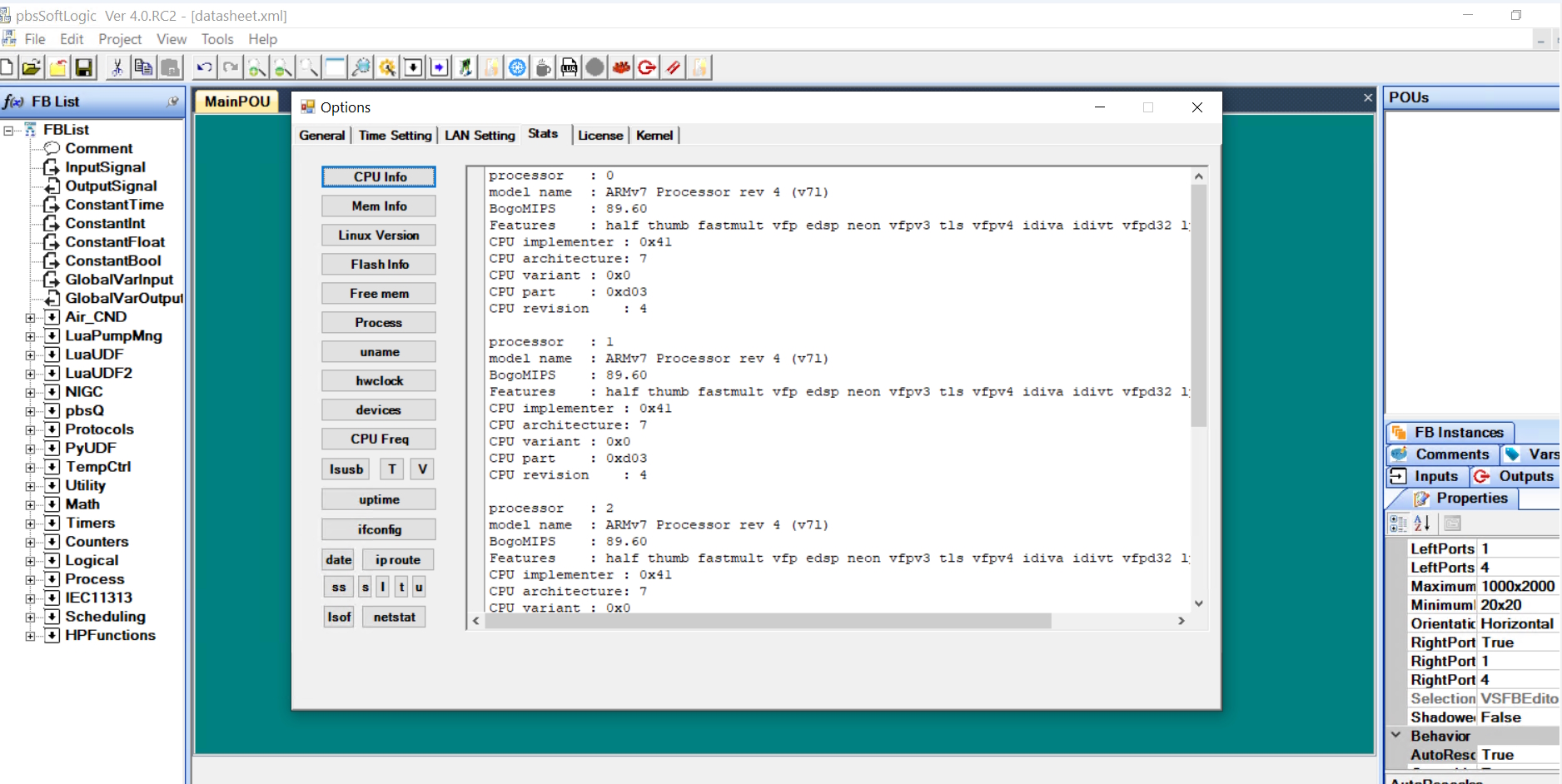

- RTU Diagnostic Utility

- Event Buffering Between Modbus Master , DNP3 Master , IEC101/104 Master ,pbsCAN Master MQTT with IEC101/104 Slave , DNP3 Slave , MQTT
